Hybrid Vector Search Index – An example

Posted on June 25, 2025

Over the past couple of years, we have seen Vector Search and Vector Indexes being added to Databases. These allow us to perform similarity searches on text, images and other types of object, with text being the typical examples demonstrated. One thing that seems to get lost in all the examples, is that the ability to perform text search in Databases has been around for a long, long time. Most databases come with various functions, search features, similarity search and indexes to find the text you are looking for. Here are links to two examples DBMS_SEARCH and Explicit Semantic Analysis [also check out Oracle Text]. But what if, instead of having multiple different features, which for each need setting up and configuring etc, you could combine Vector and Text Search into one Index. This is what Hybrid Vector Search Index does. Let’s have a look at how to setup and use this type of Index.

A Hybrid Vector Search index combines an Oracle Text domain index with an AI Vector Search index, which can be either an HSNW or IVF vector index. One key advantage of using a hybrid vector index is that it handles both chunking and vector embedding automatically during the index creation process, while at the same time setups up Oracle Text text search features. These are combined into one index.

Chunking in Vector Indexes is a technique used to break down large bodies of text into smaller, more manageable segments. This serves two main purposes: first, it improves the relevance of the content being vectorized, since lengthy text can contain multiple unrelated ideas that may reduce the accuracy of similarity searches. Second, it accommodates the input size limitations of embedding models. There’s no universal rule for determining the best chunk size—it often requires some trial and error to find what works best for your specific dataset.

Think of a “hybrid search” as a search engine that uses two different methods at once to find what you’re looking for.

Keyword Search: This is like a standard search, looking for the exact words you typed in.
Similarity Search: This is a smarter search that looks for things that are similar in meaning or concept, not just by the words used.

A hybrid search runs both types of searches and then mixes the results together into one final list. It does this by giving each result a “keyword score” (for the exact match) and a “semantic score” (for the conceptual match) to figure out the best ranking. You also have the flexibility to just do one or the other—only a keyword search or only a similarity search—and you can even adjust how the system combines the scores to get the results you want.

The example below will use a Wine Reviews (130K) dataset. This is available on Kaggle and other websites.This data set contain descriptive information of the wine with attributes about each wine including country, region, number of points, price, etc as well as a text description contain a review of the wine. The following are 2 files containing the DDL (to create the table) and then Import the data set (using sql script with insert statements). These can be run in your schema (in order listed below).

Insert records into WINEREVIEWS_130K_IMP table

Create table WINEREVIEWS_130K_IMP

I’ve also loaded the all-MiniLM-L12-v2 ONNX model into my schema. We’ll use this model for the Vector Indexing. The DESCRIPTION column contains the wine reviews details. It is this column we want to index.

To create a basic hybrid-vector index with the detailed settings we can run.

CREATE HYBRID VECTOR INDEX wine_reviews_hybrid_idx
ON WineReviews130K(description)
PARAMETERS ('MODEL all_minilm_l12_v2');

You can alter the parameters for this index. This can be done by defining your preferences. Here is an example where all the preferences are the defaults used in the above CREATE. Alter these to suit your situation and text.

BEGIN
  DBMS_VECTOR_CHAIN.CREATE_PREFERENCE(
    'my_vector_settings',
     dbms_vector_chain.vectorizer,
        json('{
            "vector_idxtype":  "ivf",
            "distance"      :  "cosine",
            "accuracy"      :  95,
            "model"         :  "minilm_l12_v2",
            "by"            :  "words",
            "max"           :  100,
            "overlap"       :  0,
            "split"         :  "recursively"          }'
        ));
END;

CREATE HYBRID VECTOR INDEX wine_reviews_hybrid_idx
ON WineReviews130K(description)
PARAMETERS('VECTORIZER my_vector_settings');

After creating the hybrid-vector index you can explore some of the characteristics of the index and how the text was chunked, etc, using the dictionary view which was created for the index, for example.

desc wine_reviews_hybrid_idx$vectors

Name                          Null?    Type
----------------------------- -------- --------------------
DOC_ROWID                     NOT NULL ROWID
DOC_CHUNK_ID                  NOT NULL NUMBER
DOC_CHUNK_COUNT               NOT NULL NUMBER
DOC_CHUNK_OFFSET              NOT NULL NUMBER
DOC_CHUNK_LENGTH              NOT NULL NUMBER
DOC_CHUNK_TEXT                         VARCHAR2(4000)
DOC_EMBEDDING                          VECTOR(*, *, DENSE)

You are now ready to start querying your data and using the hybrid-vector index. The syntax for these queries can be a little complex to start with, but with a little practice, you’ll get the hang of it. Check out the documentation for more details and examples. You can perform the following types of searches:

Semantic Document
Semantic Chunk Mode
Keyword on Document
Keyword and Semantic on Document
Keyword and Semantic on Chunk

Here’s an example of using ‘Keyword and Semantic on Document’.

select json_Serialize(
  DBMS_HYBRID_VECTOR.SEARCH(
    json(
      '{
         "hybrid_index_name" : "wine_reviews_hybrid_idx",
         "search_scorer"     : "rsf",
         "search_fusion"     : "UNION",
         "vector":
          {
             "search_text"   : "What wines are similar to Tempranillo",
             "search_mode"   : "DOCUMENT",
             "aggregator"    : "MAX",
             "score_weight"  : 1,
             "rank_penalty"  : 5
          },
         "text":
          {
             "contains"      : "$tempranillo"
             "score_weight"  : 10,
             "rank_penalty"  : 1
          },
         "return":
          {
             "values"        : [ "rowid", "score", "vector_score", "text_score" ],
             "topN"          : 10
          }
      }'
    )
  ) RETURNING CLOB pretty);

This search will return the top matching records. The ROWID is part of the returned results, allowing you to look up the corresponding records or rows from the table.

Check out the other types of searches to see what might work best for your data and search criteria.

This entry was posted in Vector Database, Vector Embeddings and tagged 23ai, AI, Artificial Intelligence, database, LLM, Oracle, Vector Embedding.

Vector Databases – Part 7 – Some simple SQL Queries

Posted on September 23, 2024 Updated on October 14, 2024

It can be very straightforward to use Vectors using SQL. It’s just a simple SQL query, with some additional Vector related requirements. The examples given below are a collection of some simple examples. These aren’t my examples, but they come from either documentation or from other examples people have come up with. I’ve tried to include references back to the original sources for these, and if I’ve missed any or referred to the wrong people, just let me know and I’ll correct the links.

In my next post on Vector Databases, I’ll explore a slightly more complex data set. I’ll use the Wine dataset used in a previous post and Vector Search to see if I can find a suitable wine. Some years ago, I had posts and presentations on machine learning to recommend wine. Using Vector Search should give us better recommendations (hopefully)!

This first example is from the Oracle Documentation on Vector Search. This contains very simple vectors for the embedding. In my previous posts I’ve shown how to generate more complex vectors from OpenAI and Cohere.

-- In the VECTORAI user run the following

-- create demo table -- Galazies
CREATE TABLE if not exists galaxies (
 id NUMBER,
 name VARCHAR2(50),
 doc VARCHAR2(500),
 embedding VECTOR);

-- Insert some data
INSERT INTO galaxies VALUES (1, 'M31', 'Messier 31 is a barred spiral galaxy in the Andromeda constellation which has a lot of barred spiral galaxies.', '[0,2,2,0,0]');
INSERT INTO galaxies VALUES (2, 'M33', 'Messier 33 is a spiral galaxy in the Triangulum constellation.', '[0,0,1,0,0]');
INSERT INTO galaxies VALUES (3, 'M58', 'Messier 58 is an intermediate barred spiral galaxy in the Virgo constellation.', '[1,1,1,0,0]');
INSERT INTO galaxies VALUES (4, 'M63', 'Messier 63 is a spiral galaxy in the Canes Venatici constellation.', '[0,0,1,0,0]');
INSERT INTO galaxies VALUES (5, 'M77', 'Messier 77 is a barred spiral galaxy in the Cetus constellation.', '[0,1,1,0,0]');
INSERT INTO galaxies VALUES (6, 'M91', 'Messier 91 is a barred spiral galaxy in the Coma Berenices constellation.', '[0,1,1,0,0]');
INSERT INTO galaxies VALUES (7, 'M49', 'Messier 49 is a giant elliptical galaxy in the Virgo constellation.', '[0,0,0,1,1]');
INSERT INTO galaxies VALUES (8, 'M60', 'Messier 60 is an elliptical galaxy in the Virgo constellation.', '[0,0,0,0,1]');
INSERT INTO galaxies VALUES (9, 'NGC1073', 'NGC 1073 is a barred spiral galaxy in Cetus constellation.', '[0,1,1,0,0]');
COMMIT;

-- How similar is galazy M31 to all the others
--   using VECTOR_DISTANCE to compare vectors.
--   the smaller the distance measure indicates simularity
--   Default distance measure = COSINE
SELECT g1.name AS galaxy_1,
       g2.name AS galaxy_2,
       VECTOR_DISTANCE(g2.embedding, g1.embedding) AS distance
FROM galaxies g1,
     galaxies g2
WHERE g1.id = 1 and g2.id <> 1
ORDER BY distance ASC;

-- Euclidean Distance
SELECT g1.name AS galaxy_1,
       g2.name AS galaxy_2,
       VECTOR_DISTANCE(g2.embedding, g1.embedding, EUCLIDEAN) AS distance
FROM galaxies g1, galaxies g2
WHERE g1.id = 1 and g2.id <> 1
ORDER BY distance ASC;

-- DOT Product
SELECT g1.name AS galaxy_1,
       g2.name AS galaxy_2,
       VECTOR_DISTANCE(g2.embedding, g1.embedding, DOT) AS distance
FROM galaxies g1, galaxies g2
WHERE g1.id = 1 and g2.id <> 1
ORDER BY distance ASC;

-- Manhattan
SELECT g1.name AS galaxy_1,
       g2.name AS galaxy_2,
       VECTOR_DISTANCE(g2.embedding, g1.embedding, MANHATTAN) AS distance
FROM galaxies g1, galaxies g2
WHERE g1.id = 1 and g2.id <> 1
ORDER BY distance ASC;

-- Hamming
SELECT g1.name AS galaxy_1,
       g2.name AS galaxy_2,
       VECTOR_DISTANCE(g2.embedding, g1.embedding, HAMMING) AS distance
FROM galaxies g1, galaxies g2
WHERE g1.id = 1 and g2.id <> 1
ORDER BY distance ASC;

Again from the Oracle documentation, here is an example with a more complex vector.

------------------------------------------
-- Here is a more complex Vector example
-- From Oracle Documentation
------------------------------------------
DROP TABLE if not exists doc_queries PURGE;
CREATE TABLE doc_queries (id NUMBER, query VARCHAR2(500), embedding VECTOR);

DECLARE
  e CLOB;
BEGIN
e:=
'[-7.73346797E-002,1.09683955E-002,4.68435362E-002,2.57333983E-002,6.95586428E-00'||
'2,-2.43412293E-002,-7.25011379E-002,6.66433945E-002,3.78751606E-002,-2.22354475E'||
'-002,3.02388351E-002,9.36625451E-002,-1.65204913E-003,3.50606232E-003,-5.4773859'||
'7E-002,-7.5879097E-002,-2.72218436E-002,7.01764375E-002,-1.32512336E-003,3.14728'||
'022E-002,-1.39147148E-001,-7.52705336E-002,2.62449421E-002,1.91645715E-002,4.055'||
'73137E-002,5.83701171E-002,-3.26474942E-002,2.0509012E-002,-3.81141738E-003,-7.1'||
'8656182E-002,-1.95893757E-002,-2.56917924E-002,-6.57705888E-002,-4.39117625E-002'||
',-6.82357177E-002,1.26592368E-001,-3.46683599E-002,1.07687116E-001,-3.96954492E-'||
'002,-9.06721968E-003,-2.4109887E-002,-1.29214963E-002,-4.82468568E-002,-3.872307'||
'76E-002,5.13443872E-002,-1.40985977E-002,-1.87066793E-002,-1.11725368E-002,9.367'||
'76772E-002,-6.39425665E-002,3.13162468E-002,8.61801133E-002,-5.5481784E-002,4.13'||
'125418E-002,2.0447813E-002,5.03717586E-002,-1.73418857E-002,3.94522659E-002,-7.2'||
'6833269E-002,3.13266069E-002,1.2377765E-002,7.64856935E-002,-3.77447419E-002,-6.'||
'41075056E-003,1.1455299E-001,1.75497644E-002,4.64923214E-003,1.89623125E-002,9.1'||
'3506597E-002,-8.22509527E-002,-1.28537193E-002,1.495138E-002,-3.22528258E-002,-4'||
'.71280375E-003,-3.15563753E-003,2.20409594E-002,7.77796134E-002,-1.927099E-002,-'||
'1.24283969E-001,4.69769612E-002,1.78121701E-002,1.67152807E-002,-3.83916795E-002'||
',-1.51029453E-002,2.10864041E-002,6.86845928E-002,-7.4719809E-002,1.17681816E-00'||
'3,3.93113159E-002,6.04066066E-002,8.55340436E-002,3.68878953E-002,2.41579115E-00'||
'2,-5.92489541E-002,-1.21883564E-002,-1.77226216E-002,-1.96259264E-002,8.51236377'||
'E-003,1.43039867E-001,2.62829307E-002,2.96348184E-002,1.92485824E-002,7.66567141'||
'E-002,-1.18600562E-001,3.01779062E-002,-5.88010997E-002,7.07774982E-002,-6.60426'||
'617E-002,6.44619241E-002,1.29240509E-002,-2.51785964E-002,2.20869959E-004,-2.514'||
'38171E-002,5.52265197E-002,8.65883753E-002,-1.83726232E-002,-8.13263431E-002,1.1'||
'6624301E-002,1.63392909E-002,-3.54643688E-002,2.05128491E-002,4.67337575E-003,1.'||
'20488718E-001,-4.89500947E-002,-3.80397178E-002,6.06209273E-003,-1.37961926E-002'||
',4.68355882E-031,3.35873142E-002,6.20040558E-002,2.13472452E-002,-1.87379227E-00'||
'3,-5.83158981E-004,-4.04266678E-002,2.40761992E-002,-1.93725452E-002,9.3763724E-'||
'002,-3.02913114E-002,7.67844869E-003,6.11112304E-002,6.02455214E-002,-6.38855845'||
'E-002,-8.03523697E-003,2.08786246E-003,-7.45898336E-002,8.74964818E-002,-5.02371'||
'937E-002,-4.99385223E-003,3.37120108E-002,8.99377018E-002,1.09540671E-001,5.8501'||
'102E-002,1.71627291E-002,-3.26152593E-002,8.36912021E-002,5.05600758E-002,-9.737'||
'63615E-002,-1.40264994E-002,-2.07926836E-002,-4.20163684E-002,-5.97197041E-002,1'||
'.32461395E-002,2.26361351E-003,8.1473738E-002,-4.29272018E-002,-3.86809185E-002,'||
'-8.24682564E-002,-3.89646105E-002,1.9992901E-002,2.07321253E-002,-1.74706057E-00'||
'2,4.50415723E-003,4.43851873E-002,-9.86309871E-002,-7.68082142E-002,-4.53814305E'||
'-003,-8.90906602E-002,-4.54972908E-002,-5.71065396E-002,2.10020249E-003,1.224947'||
'07E-002,-6.70659095E-002,-6.52298108E-002,3.92126441E-002,4.33384106E-002,4.3899'||
'6181E-002,5.78813367E-002,2.95345876E-002,4.68395352E-002,9.15119275E-002,-9.629'||
'58392E-003,-5.96637605E-003,1.58674959E-002,-6.74034096E-003,-6.00510836E-002,2.'||
'67188111E-003,-1.10706768E-003,-6.34015873E-002,-4.80389707E-002,6.84534572E-003'||
',-1.1547043E-002,-3.44865513E-003,1.18979132E-002,-4.31232266E-002,-5.9022788E-0'||
'02,4.87607308E-002,3.95954074E-003,-7.95252472E-002,-1.82770658E-002,1.18264249E'||
'-002,-3.79164703E-002,3.87993976E-002,1.09805465E-002,2.29136664E-002,-7.2278082'||
'4E-002,-5.31538352E-002,6.38669729E-002,-2.47980515E-003,-9.6999377E-002,-3.7566'||
'7699E-002,4.06541862E-002,-1.69874367E-003,5.58868013E-002,-1.80723771E-033,-6.6'||
'5985467E-003,-4.45010923E-002,1.77929532E-002,-4.8369132E-002,-1.49722975E-002,-'||
'3.97582203E-002,-7.05247298E-002,3.89178023E-002,-8.26886389E-003,-3.91006246E-0'||
'02,-7.02963024E-002,-3.91333885E-002,1.76661201E-002,-5.09723537E-002,2.37749107'||
'E-002,-1.83419678E-002,-1.2693027E-002,-1.14232123E-001,-6.68751821E-002,7.52167'||
'869E-003,-9.94713791E-003,6.03599809E-002,6.61353692E-002,3.70595567E-002,-2.019'||
'52495E-002,-2.40410417E-002,-3.36526595E-002,6.20064288E-002,5.50279953E-002,-2.'||
'68641673E-002,4.35859226E-002,-4.57317568E-002,2.76936609E-002,7.88119733E-002,-'||
'4.78852056E-002,1.08523415E-002,-6.43479973E-002,2.0192951E-002,-2.09538229E-002'||
',-2.2202393E-002,-1.0728148E-003,-3.09607089E-002,-1.67067181E-002,-6.03572279E-'||
'002,-1.58187654E-002,3.45828459E-002,-3.45360823E-002,-4.4002533E-003,1.77463517'||
'E-002,6.68234832E-004,6.14458732E-002,-5.07084019E-002,-1.21073434E-002,4.195981'||
'85E-002,3.69152687E-002,1.09461844E-002,1.83413982E-001,-3.89185362E-002,-5.1846'||
'0497E-002,-8.71620141E-003,-1.17692262E-001,4.04785499E-002,1.07505821E-001,1.41'||
'624091E-002,-2.57720836E-002,2.6652012E-002,-4.50568087E-002,-3.34110335E-002,-1'||
'.11387551E-001,-1.29796984E-003,-6.51671961E-002,5.36890551E-002,1.0702607E-001,'||
'-2.34011523E-002,3.97406481E-002,-1.01149324E-002,-9.95831117E-002,-4.40197848E-'||
'002,6.88989647E-003,4.85475454E-003,-3.94048765E-002,-3.6099229E-002,-5.4075513E'||
'-002,8.58292207E-002,1.0697281E-002,-4.70785573E-002,-2.96272673E-002,-9.4919120'||
'9E-003,1.57316476E-002,-5.4926388E-002,6.49022609E-002,2.55531631E-002,-1.839057'||
'17E-002,4.06873561E-002,4.74951901E-002,-1.22502812E-033,-4.6441108E-002,3.74079'||
'868E-002,9.14599106E-004,6.09740615E-002,-7.67391697E-002,-6.32521287E-002,-2.17'||
'353106E-002,2.45231949E-003,1.50869079E-002,-4.96984981E-002,-3.40828523E-002,8.'||
'09691194E-003,3.31339166E-002,5.41345142E-002,-1.16213948E-001,-2.49572527E-002,'||
'5.00682592E-002,5.90037219E-002,-2.89178211E-002,8.01460445E-003,-3.41945067E-00'||
'2,-8.60121697E-002,-6.20261126E-004,2.26721354E-002,1.28968194E-001,2.87655368E-'||
'002,-2.20255274E-002,2.7228903E-002,-1.12029864E-002,-3.20301466E-002,4.98079099'||
'E-002,2.89051589E-002,2.413591E-002,3.64605561E-002,6.26017479E-003,6.54632896E-'||
'002,1.11282602E-001,-3.60428065E-004,1.95987038E-002,6.16615731E-003,5.93593046E'||
'-002,1.50377362E-003,2.95319762E-002,2.56325547E-002,-1.72190219E-002,-6.5816819'||
'7E-002,-4.08149995E-002,2.7983617E-002,-6.80195764E-002,-3.52494679E-002,-2.9840'||
'0577E-002,-3.04043181E-002,-1.9352382E-002,5.49411364E-002,8.74160081E-002,5.614'||
'25127E-002,-5.60747795E-002,-3.43311466E-002,9.83581021E-002,2.01142877E-002,1.3'||
'193069E-002,-3.22583504E-002,8.54402035E-002,-2.20514946E-002]';

INSERT INTO doc_queries VALUES (13, 'different methods of backup and recovery', e);
COMMIT;
END;
/

The next example is a really nice one, so check out the link to the original post. They give some charts which plot the vectors. You can use these to easily visualize the data points and why we get our answers to the queries.

-----------------------
-- Another example
-- taken from https://medium.com/@ludan.aguirre/oracle-23ai-vector-search-its-all-about-semantics-f9224ac6d4bb
-----------------------

CREATE TABLE if not exists PARKING_LOT (
 VEHICLE VARCHAR2(10),
 LOCATION VECTOR
);

INSERT INTO PARKING_LOT VALUES('CAR1','[7,4]');
INSERT INTO PARKING_LOT VALUES('CAR2','[3,5]');
INSERT INTO PARKING_LOT VALUES('CAR3','[6,2]');
INSERT INTO PARKING_LOT VALUES('TRUCK1','[10,7]');
INSERT INTO PARKING_LOT VALUES('TRUCK2','[4,7]');
INSERT INTO PARKING_LOT VALUES('TRUCK3','[2,3]');
INSERT INTO PARKING_LOT VALUES('TRUCK4','[5,6]');
INSERT INTO PARKING_LOT VALUES('BIKE1','[4,1]');
INSERT INTO PARKING_LOT VALUES('BIKE2','[6,5]');
INSERT INTO PARKING_LOT VALUES('BIKE3','[2,6]');
INSERT INTO PARKING_LOT VALUES('BIKE4','[5,8]');
INSERT INTO PARKING_LOT VALUES('SUV1','[8,2]');
INSERT INTO PARKING_LOT VALUES('SUV2','[9,5]');
INSERT INTO PARKING_LOT VALUES('SUV3','[1,2]');
INSERT INTO PARKING_LOT VALUES('SUV4','[5,4]');

select
v1.vehicle as vehicle_1,
v2.vehicle as vehicle_2,
VECTOR_DISTANCE(v1.location,v2.location,EUCLIDEAN) as distance
from parking_lot v1, parking_lot v2
where v1.vehicle='CAR1'
order by distance asc
FETCH FIRST 6 ROWS ONLY;


select
v1.vehicle as vehicle_1,
v2.vehicle as vehicle_2,
VECTOR_DISTANCE(v1.location,v2.location,EUCLIDEAN) as distance
from parking_lot v1, parking_lot v2
where v1.vehicle='TRUCK4'
order by distance asc
FETCH FIRST 6 ROWS ONLY;

I’ll have another post on using Vector Search to explore and make Wine recommendations based on personalized tastes etc.

This entry was posted in 23ai, Vector Database, Vector Embeddings and tagged Vector Database, Vector Embedding, Vector Search.

Vector Databases – Part 6 – SQL function/trigger using OpenAI

Posted on September 19, 2024

In my previous post, I gave examples of using Cohere to create vector embeddings using SQL and of using a Trigger to populate a Vector column. This post extends those concepts, and in this post, we will use OpenAI.

Warning: At the time of writing this post there is a bug in Oracle 23.5 and 23.6 that limits the OpenAI key to a maximum of 130 characters. The newer project-based API keys can generate keys which are greater than 130 characters. You might get lucky with getting a key of appropriate length or you might have to generate several. An alternative to to create a Legacy (or User Key). But there is no guarantee how long these will be available.

Assuming you have an OpenAI API key of 130 characters or less you can follow the remaining steps. This is now a know bug for the Oracle Database (23.5, 23.6) and it should be fixed in the not-too-distant future. Hopefully!

In my previous post I’ve already added to the ACL (Access Control List) the ability to run against any host. The command to do that was easy, perhaps too easy, as it will allow the ‘vectorai’ schema to access any website etc. I really should have limited it to the address of Cohere and in this post to OpenAI. Additionally, I should have limited to specific port numbers. That’s a bit of security risk and in your development, test and production environment you should have these restrictions.

In the ‘vectorai’ schema we need to create a new credential to store the OpenAI key. I’ve called this credential CRED_OPENAI

DECLARE
  jo json_object_t;
BEGIN
  jo := json_object_t();
  jo.put('access_token', '...');
  dbms_vector.create_credential(
    credential_name   => 'CRED_OPENAI',
    params            => json(jo.to_string));
END;

Next, we can test calling the embedding model from OpenAI. The embedding model used in this example is called ‘text-embedding-3-small’

declare
  input clob;
  params clob;
  output clob;
  v VECTOR;
begin
--  input := 'hello';
  input := 'Aromas include tropical fruit, broom, brimstone and dried herb. The palate isnt overly expressive, offering unripened apple, citrus and dried sage alongside brisk acidity.';

  params := '
{
  "provider": "OpenAI",
  "credential_name": "CRED_OPEAI",
  "url": "https://api.openai.com/v1/embeddings",
  "model": "text-embedding-3-small"
}';

  v := dbms_vector.utl_to_embedding(input, json(params));
  output := to_clob(v);
  dbms_output.put_line('VECTOR');
  dbms_output.put_line('--------------------');
  dbms_output.put_line(dbms_lob.substr(output,1000)||'...');
exception
  when OTHERS THEN
    DBMS_OUTPUT.PUT_LINE (SQLERRM);
    DBMS_OUTPUT.PUT_LINE (SQLCODE);
end;

And in a similar manner to the Cohere example we can create a trigger to popular a Vector column.

Warning: You should not mix the use of different embedding models when creating vectors. A vector column should only have vectors created by the same embedding models, and not from two different models.

create or replace trigger vec_test_trig2
   before insert or update on vec_test
for each row
declare
   params clob;
   v  vector;
begin
   params := '{
  "provider": "OpenAI",
  "credential_name": "CRED_OPEAI",
  "url": "https://api.openai.com/v1/embeddings",
  "model": "text-embedding-3-small"
}';

  v := dbms_vector.utl_to_embedding(:new.col2, json(params));
  :new.col3 := v;
end;

This entry was posted in 23ai, Vector Database, Vector Embeddings and tagged Vector Database, Vector Embedding.

Vector Databases – Part 5 – SQL function to call External Embedding model

Posted on September 9, 2024 Updated on September 7, 2024

There are several ways to create Vector embedding. In previous posts, I’ve provided some examples (see links below). These examples were externally created and then loaded into the database.

But what if we want to do this internally in the database? We can use SQL and create a new vector embedding every time we insert or update a record.

The following examples are based on using the Oracle 23.5ai Virtual Machine. These examples illustrate using a Cohere Embedding model. At time of writing this post using OpenAI generates an error. In theory it should work and might work with subsequent database releases. All you need to do is include your OpenAI key and model to use.

Step-1 : DBA tasks

Log into the SYSTEM schema for the 23.5ai Database on the VM. You can do this using SQLcl, VS Code, SQL Developer or whatever is your preferred tool. I’m assuming you have a schema in the DB you want to use. In my example, this schema is called VECTORAI. Run the following:

BEGIN
  DBMS_NETWORK_ACL_ADMIN.APPEND_HOST_ACE(
    host => '*',
    ace => xs$ace_type(privilege_list => xs$name_list('connect'),
                       principal_name => 'vectorai',
                       principal_type => xs_acl.ptype_db));
END;


grant create credential to vectorai;

This code will open the database to the outside world to all available site, host => ‘*’. This is perhaps a little dangerous and should be restricted to only the site you want access to. Then grant an additional privilege to VECTORAI which allows it to create credentials. We’ll use this in the next step.

Steps 2 – In Developer Schema (vectorai)

Next, log into your developer schema. In this example, I’m using a schema called VECTORAI.

Step 3 – Create a Credential

Create a credential which points to your API Key. In this example, I’m connecting to my Cohere API key.

DECLARE
  jo json_object_t;
BEGIN
  jo := json_object_t();
  jo.put('access_token', '...');
  dbms_vector.create_credential(
    credential_name   => 'CRED_COHERE',
    params            => json(jo.to_string));
END;

Enter your access token in the above, replacing the ‘…’

Step 4 – Test calling the API to return a Vector

Use the following code to test calling an Embedding Model passing some text to parse.

declare
  input clob;
  params clob;
  output clob;
  v VECTOR;
begin
--  input := 'hello';
  input := 'Aromas include tropical fruit, broom, brimstone and dried herb. The palate isnt overly expressive, offering unripened apple, citrus and dried sage alongside brisk acidity.';

  params := '
{
  "provider": "cohere",
  "credential_name": "CRED_COHERE",
  "url": "https://api.cohere.ai/v1/embed",
  "model": "embed-english-v2.0"
}';

  v := dbms_vector.utl_to_embedding(input, json(params));
  output := to_clob(v);
  dbms_output.put_line('VECTOR');
  dbms_output.put_line('--------------------');
  dbms_output.put_line(dbms_lob.substr(output,1000)||'...');
exception
  when OTHERS THEN
    DBMS_OUTPUT.PUT_LINE (SQLERRM);
    DBMS_OUTPUT.PUT_LINE (SQLCODE);
end;

This should generate something like the following with the Vector values.

VECTOR

--------------------

[-1.33886719E+000,-3.61816406E-001,7.50488281E-001,5.11230469E-001,-3.63037109E-001,1.5222168E-001,1.50390625E+000,-1.81674957E-004,-4.65087891E-002,-7.48535156E-001,-8.62426758E-002,-1.24414062E+000,-1.02148438E+000,1.19433594E+000,1.41503906E+000,-7.02148438E-001,-1.66015625E+000,2.39990234E-001,8.68652344E-001,1.90917969E-001,-3.17871094E-001,-7.08007812E-001,-1.29882812E+000,-5.63476562E-001,-5.65429688E-001,-7.60498047E-002,-1.40820312E+000,1.01367188E+000,-6.45996094E-001,-1.38574219E+000,2.31054688E+000,-1.21191406E+000,6.65893555E-002,1.02148438E+000,-8.16040039E-002,-5.17578125E-001,1.61035156E+000,1.23242188E+000,1.76879883E-001,-5.71777344E-001,1.45214844E+000,1.30957031E+000,5.30395508E-002,-1.38476562E+000,1.00976562E+000,1.36425781E+000,8.8671875E-001,1.578125E+000,7.93457031E-001,1.03027344E+000,1.33007812E+000,1.08300781E+000,-4.21875E-001,-1.23535156E-001,1.31933594E+000,-1.21191406E+000,4.49462891E-001,-1.06640625E+000,5.26367188E-001,-1.95214844E+000,1.58105469E+000,...

The Vector displayed above has been truncated, as the vector contains 4096 dimensions. If you’d prefer to work with a smaller number of dimensions you could use the ’embed-english-light-v2.0′ embedding model.

An alternative way to test this is using SQLcl and run the following:

var params clob;
exec :params := '{"provider": "cohere", "credential_name": "CRED_COHERE", "url": "https://api.cohere.ai/v1/embed", "model": "embed-english-v2.0"}';
select dbms_vector.utl_to_embedding('hello', json(:params)) from dual;

In this example, the text to be converted into a vector is ‘hello’

Step 5 – Create an Insert/Update Trigger on table.

Let’s create a test table.

create table vec_test (col1 number, col2 varchar(200), col3 vector);

Using the code from the previous step, we can create an insert/update trigger.

create or replace trigger vec_test_trig
   before insert or update on vec_test
for each row
declare
   params clob;
   v  vector;
begin
   params := '
{
  "provider": "cohere",
  "credential_name": "CRED_COHERE",
  "url": "https://api.cohere.ai/v1/embed",
  "model": "embed-english-v2.0"
}';

  v := dbms_vector.utl_to_embedding(:new.col2, json(params));
  :new.col3 := v;
end;

We can easily test this trigger and the inserting/updating of the vector embedding using the following.

insert into vec_test values (1, 'Aromas include tropical fruit, broom, brimstone and dried herb', null);

select * from vec_test;

update VEC_TEST
set col2 = 'Wonderful aromas, lots of fruit, dark cherry and oak'
where col1 = 1;

select * from vec_test;

When you inspect the table after the insert statement, you’ll see the vector has been added. Then after the update statement, you’ll be able to see we have a new vector for the record.

This entry was posted in 23ai, PL/SQL, SQL, Vector Database, Vector Embeddings and tagged 23ai, SQL, Vector Database, Vector Embedding, Vector Search.

Using OpenAI to Generate Vector Embeddings

Posted on August 28, 2024 Updated on August 22, 2024

In a recent post, I demonstrated how you could use Cohere to generate Vector Embeddings. Despite having upgraded to a Production API (i.e. a paid one), the experience and time taken to process a relatively small dataset was underwhelming. The result was Cohere wasn’t up to the job of generating Vector Embeddings for the dataset, never mind a few hundred records of that dataset.

This post explores using OpenAI to perform the same task.

First thing is to install the OpenAI python library

pip install openai

Next, you need to create an account with OpenAI. This will allow you to get an API key. OpenAI gives you greater access to and usage of their algorithms than Cohere. Their response times are quicker and you have to lots before any rate limiting might kick in.

Using the same Wine Reviews dataset, the following code processes the data in the same/similar using the OpenAI embedding models. OpenAI has three text embedding models and these create vector embeddings with up to 1536 dimensions, or if you use the large model it will have 3072 dimensions. However, with these OpenAI Embedding models, you can specify a small number of dimensions, which gives you flexibility based on your datasets and the problems being addressed. It also allows you to be more careful with the space allocation for the vector embeddings and the vector indexes created on these.

One other setup you need to do to use the OpenAI API is to create a local environment variable. You can do this at the terminal level, or set/define it in your Python code, as shown below.

import openai
import os
import numpy as np
import os
import time
import pandas as pd

print_every = 200
num_records = 10000

#define your OpenAI API Key
os.environ["OPENAI_API_KEY"] = "... Your OpenAI API Key ..."

client = openai.OpenAI()

#load file into pandas DF
data_file = '.../winemag-data-130k-v2.csv'
df = pd.read_csv(data_file)

#define the outfile name
print("Input file :", data_file)
v_file = os.path.splitext(data_file)[0]+'.openai'
print(v_file)

#Open file with write (over-writes previous file)
f=open(v_file,"w")
f.write("delete from WINE_REVIEWS_130K;\n")
for index,row in df.head(num_records).iterrows():
    response = client.embeddings.create(
        model = "text-embedding-3-large",
        input = row['description'],
        dimensions = 100
    )
    v_embedding = str(response.data[0].embedding)
    tab_insert="INSERT into WINE_REVIEWS_130K VALUES ("+str(row["Seq"])+"," \
        +"'"+str(row["country"])+"'," \
        +"'"+str(row["description"])+"'," \
        +"'"+str(row["designation"])+"'," \
        +str(row["points"])+"," \
        +str(row["price"])+"," \
        +"'"+str(row["province"])+"'," \
        +"'"+str(row["region_1"])+"'," \
        +"'"+str(row["region_2"])+"'," \
        +"'"+str(row["taster_name"])+"'," \
        +"'"+str(row["taster_twitter_handle"])+"'," \
        +"'"+str(row["title"])+"'," \
        +"'"+str(row["variety"])+"'," \
        +"'"+str(row["winery"])+"'," \
        +"'"+v_embedding+"'"+");\n"

#    print(tab_insert)

    f.write(tab_insert)
    if (index%print_every == 0):
        print(f'Processed {index} vectors ', time.strftime("%H:%M:%S", time.localtime()))


#Close vector file
f.write("commit;\n")
f.close()
print(f"Finished writing file with Vector data [{index+1} vectors]", time.strftime("%H:%M:%S", time.localtime()))

That’s it. You can now run the script file to populate the table in your Database.

I mentioned above in in my previous post about using Cohere for this task. Yes there were some issues when using Cohere but for OpenAI everything ran very smoothly and was much. quicker too. I did encounter some rate limiting with OpenAI when I tried to processs more than ten thousand records. But the code did eventually complete.

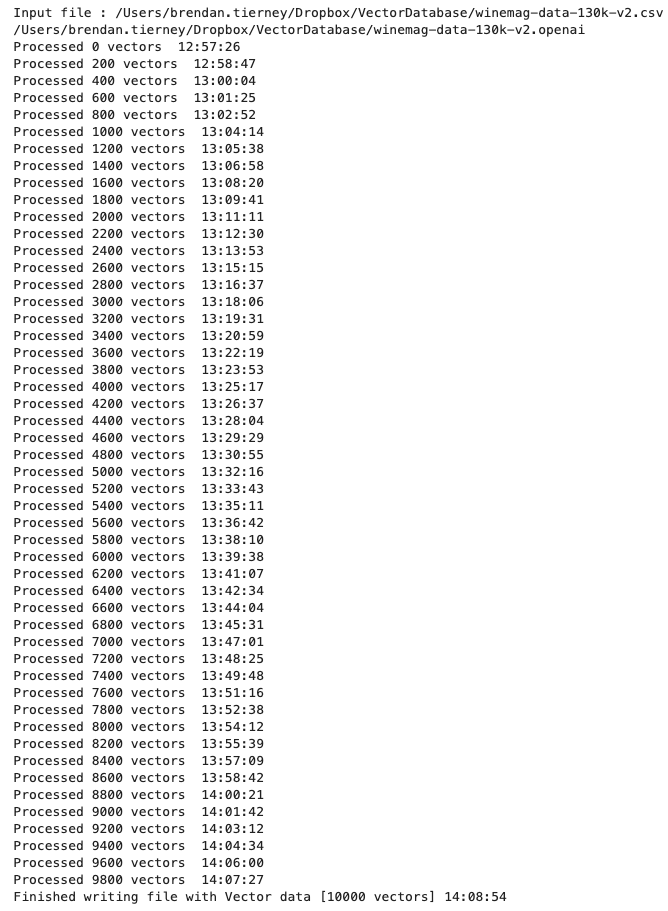

Here is an example of the output from one of my tests.

This entry was posted in Vector Database, Vector Embeddings and tagged OpenAI, Vector Embedding.

Ora-lytics

By Brendan Tierney

Vector Embedding

Hybrid Vector Search Index – An example

Vector Databases – Part 7 – Some simple SQL Queries

Vector Databases – Part 6 – SQL function/trigger using OpenAI

Vector Databases – Part 5 – SQL function to call External Embedding model

Using OpenAI to Generate Vector Embeddings

Vector Embedding

Hybrid Vector Search Index – An example

Share this:

Vector Databases – Part 7 – Some simple SQL Queries

Share this:

Vector Databases – Part 6 – SQL function/trigger using OpenAI

Share this:

Vector Databases – Part 5 – SQL function to call External Embedding model

Share this:

Using OpenAI to Generate Vector Embeddings

Share this:
